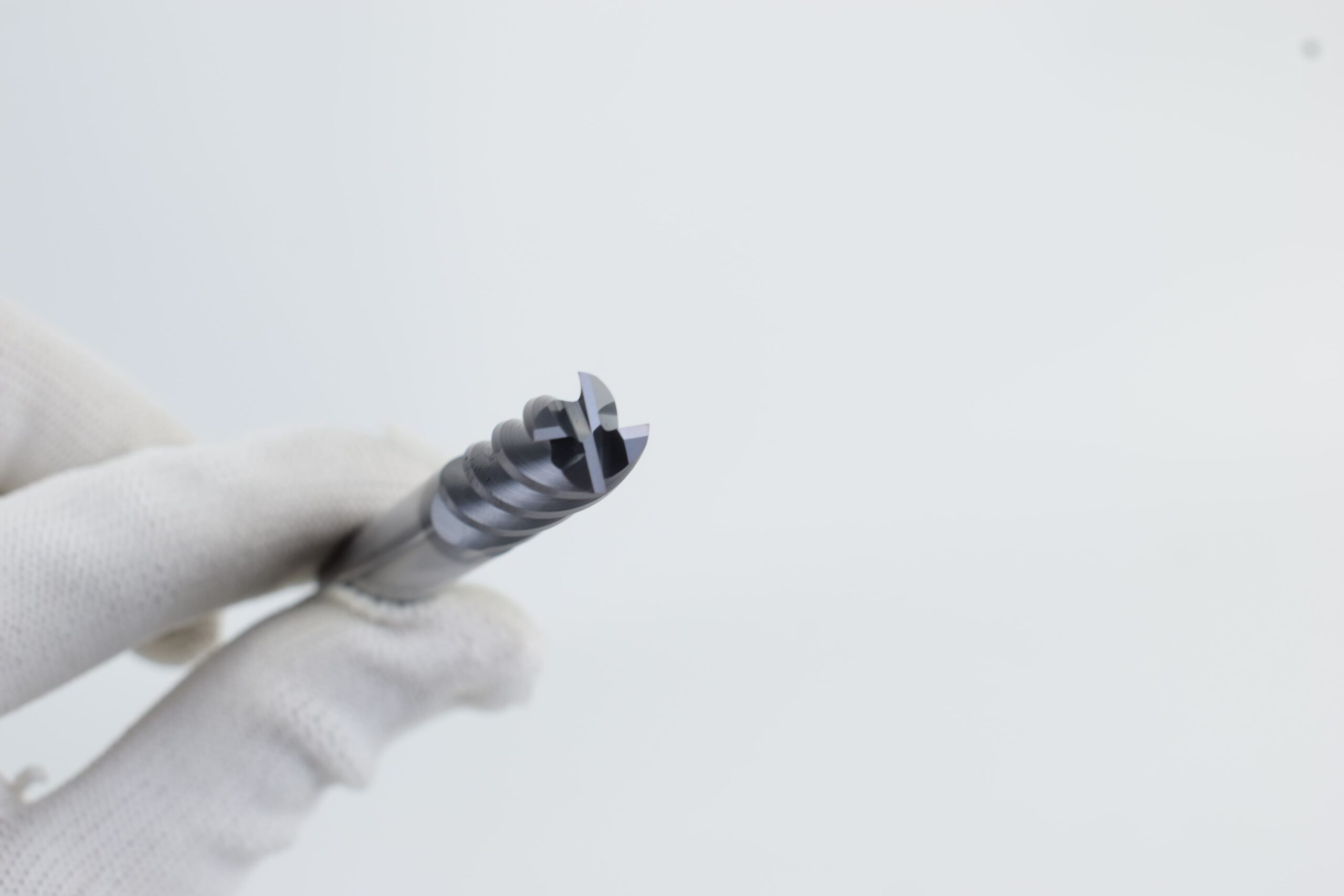

50 HRC 4 Flute Endmill (Main)

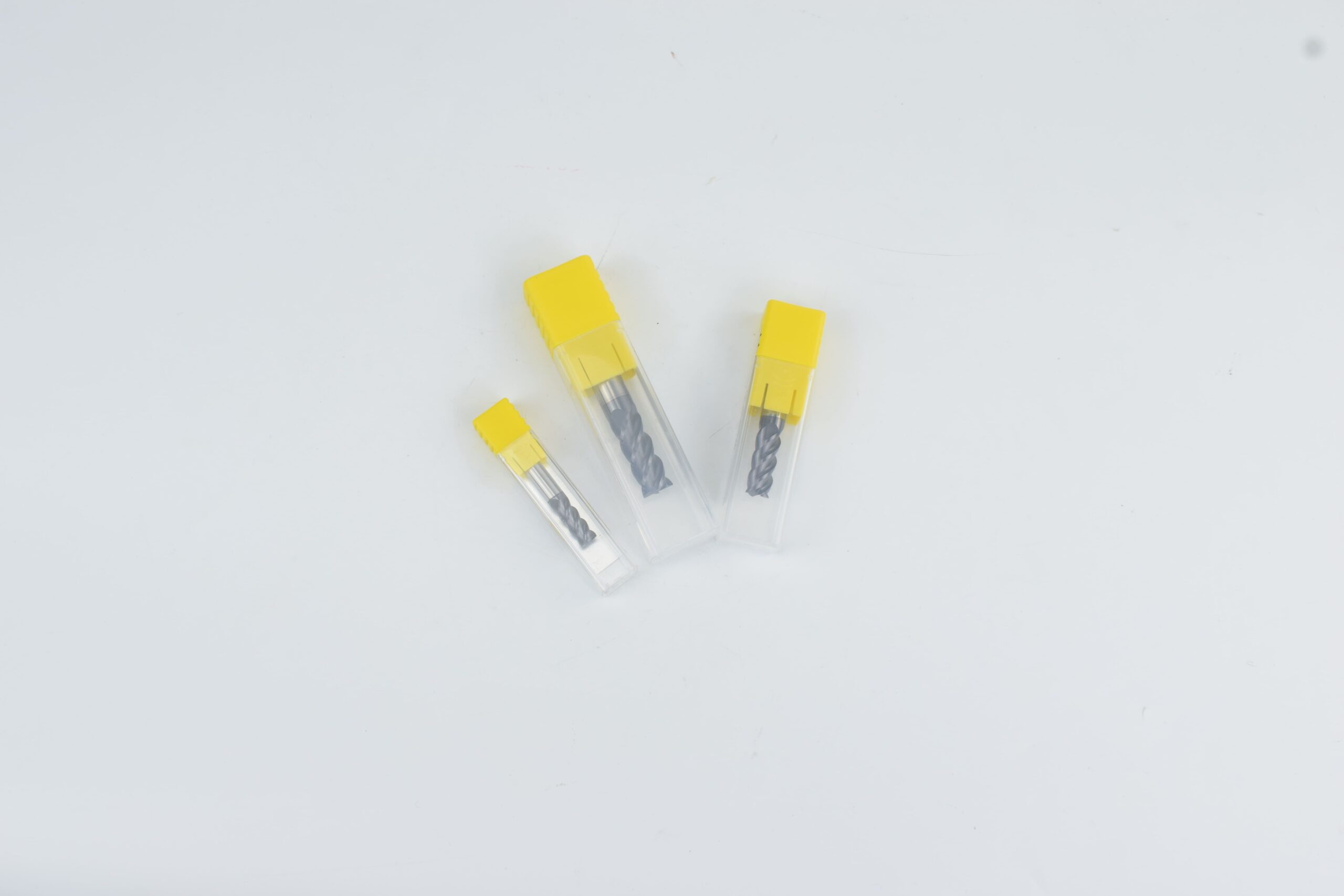

50 HRC 4 Flute Endmill (GAL-4)

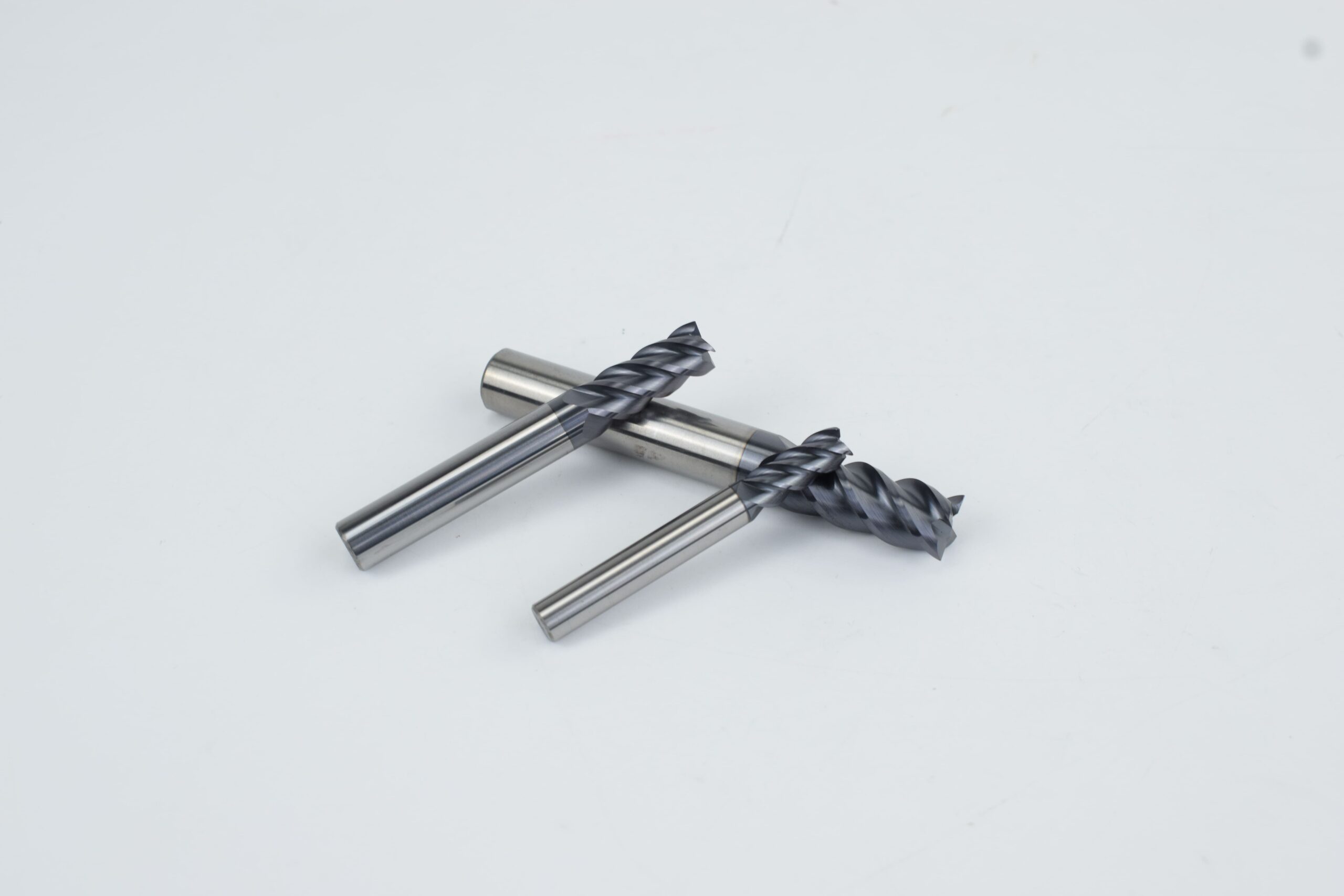

50 HRC 4 Flute Endmill (GAL-1)

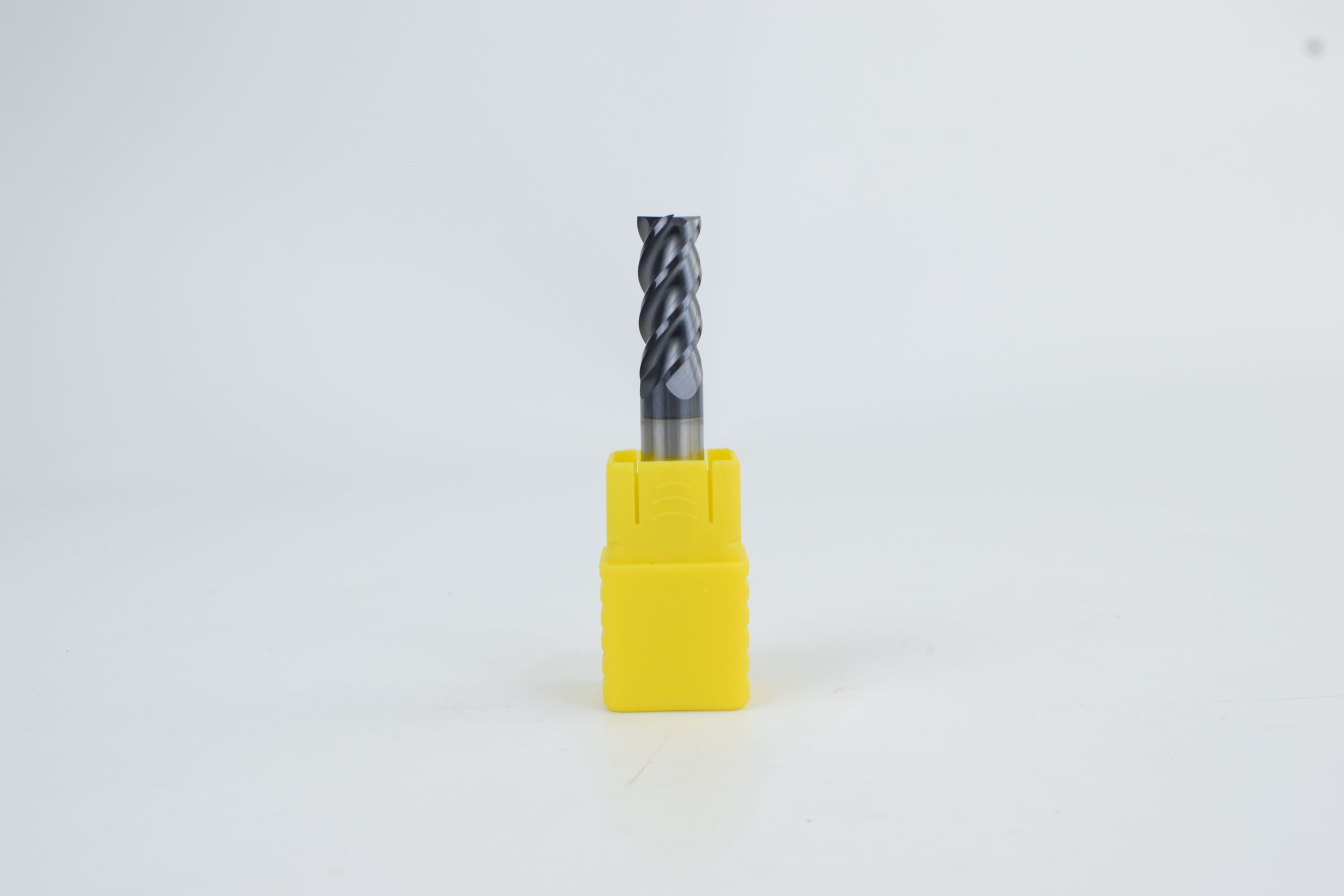

50 HRC 4 Flute Endmill (GAL-2)

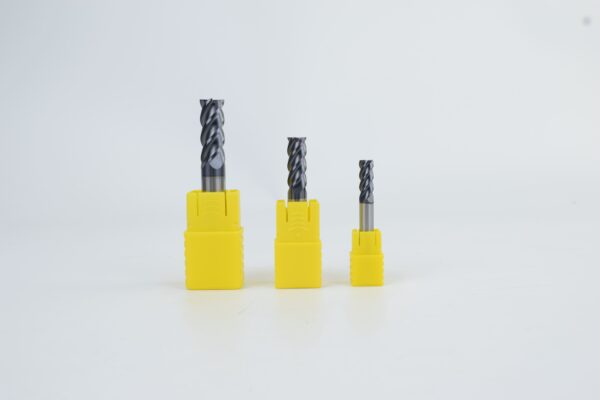

50 HRC 4 Flute Endmill (GAL-3)

50 HRC 4 Flute Endmill (Main)

50 HRC 4 Flute Endmill (GAL-4)

50 HRC 4 Flute Endmill (GAL-1)

50 HRC 4 Flute Endmill (GAL-2)

50 HRC 4 Flute Endmill (GAL-3)

50 HRC 4 Flute Endmill

Suitable for

Mild Steel
Casting
Steel 30-45 HRC
EN Grade Material
Aluminium

Standard

Dia (D)	Flute Length (l)	Total Length (L)	Shank Dia (d)
1	3	50	4
1.5	4	50	4
2	5	50	4
2.5	8	50	4
3	8	50	3
3	8	50	4
3.5	10	50	4
4	10	50	4
5	12	50	5
6	15	50	6
7	20	60	8
8	20	60	8
9	25	75	10
10	25	75	10
11	30	75	12
12	30	75	12
14	45	100	14
16	45	100	16
18	45	100	18
20	45	100	20
25	45	100	25

Long

Dia (D)	Flute Length (l)	Total Length (L)	Shank Dia (d)
1	3	75	4
1.5	5	75	4
2	6	75	4
3	12	75	4
4	20	75	4
5	20	75	5
6	25	75	6
8	30	75	8
10	40	100	10
12	45	100	12
14	60	150	14
16	60	150	16
18	70	150	18
20	70	150	20

Extra Long

Dia (D)	Flute Length (l)	Total Length (L)	Shank Dia (d)
3	12	100	3
4	25	100	4
5	25	100	5
6	30	100	6
6	40	150	6
8	35	100	8
8	50	150	8
10	60	150	10
12	60	150	12
